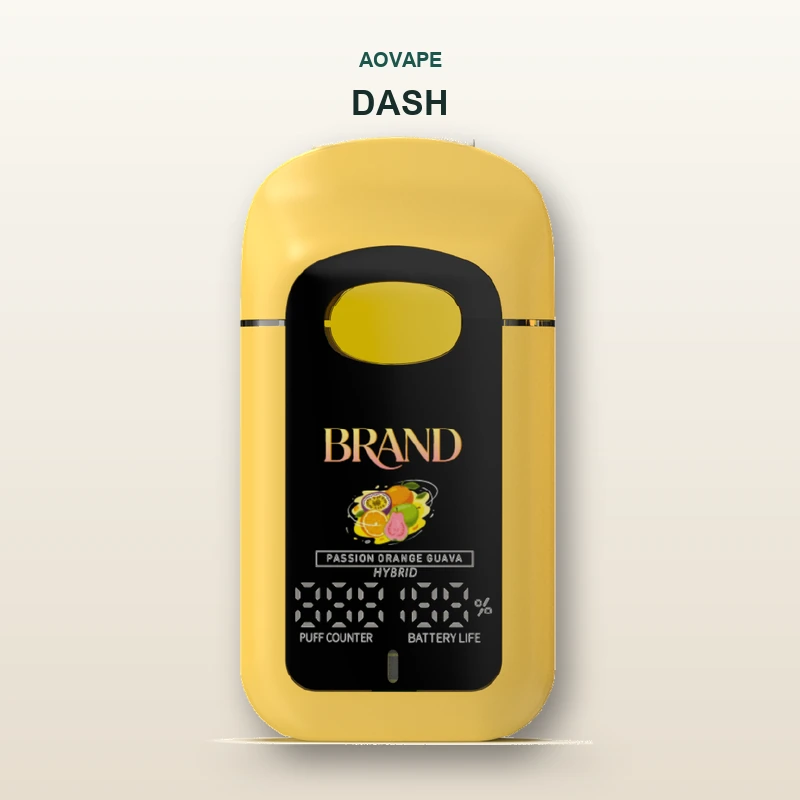

Compact Display Platform
Dash pairs a 1.9mL reservoir with draw activation, a hidden control button, 2.0V preheat and a digital interface for puff count and battery status.
SCREEN 1 / 09

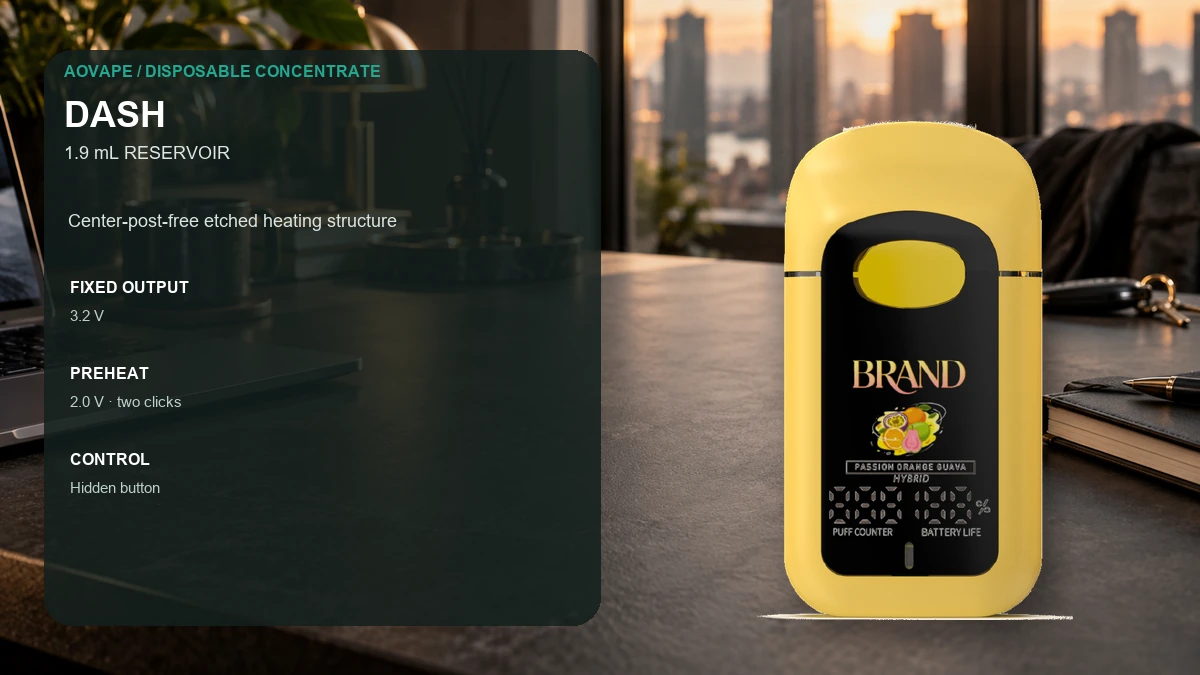

Designed Around the Buyer's Daily Routine
- Dash pairs a 1.9mL reservoir with draw activation, a hidden control button, 2.0V preheat and a digital interface for puff count and battery status.
- The first screen establishes the device format, interface and adult urban-use context without hiding the product.
SCREEN 2 / 09
Status Without Extra Bulk
- The digital interface presents puff count and battery status.
- A hidden control button keeps the front layout clean.
- Draw activation starts normal use.
SCREEN 3 / 09

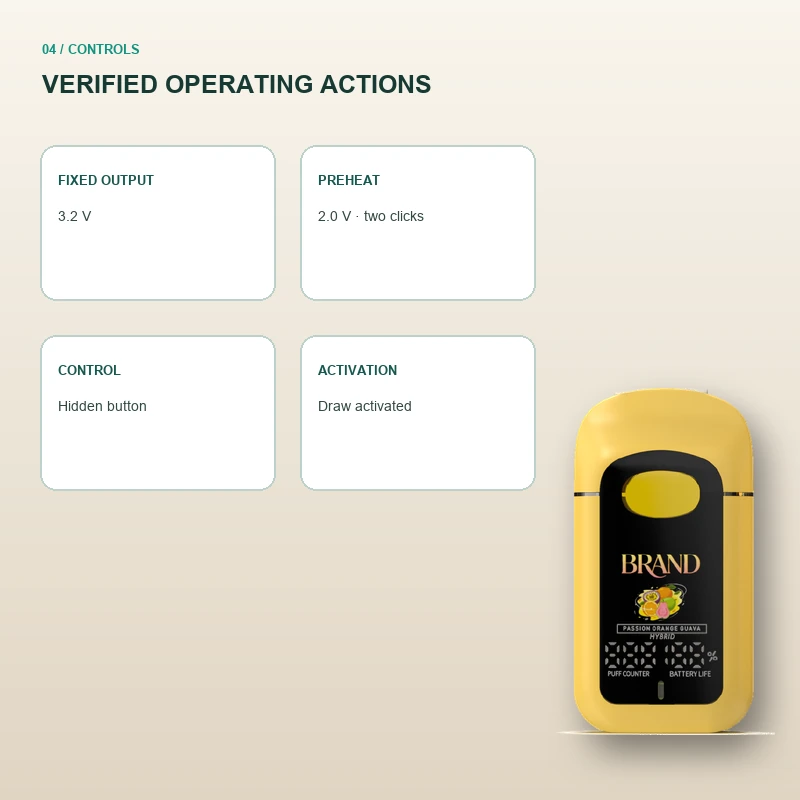

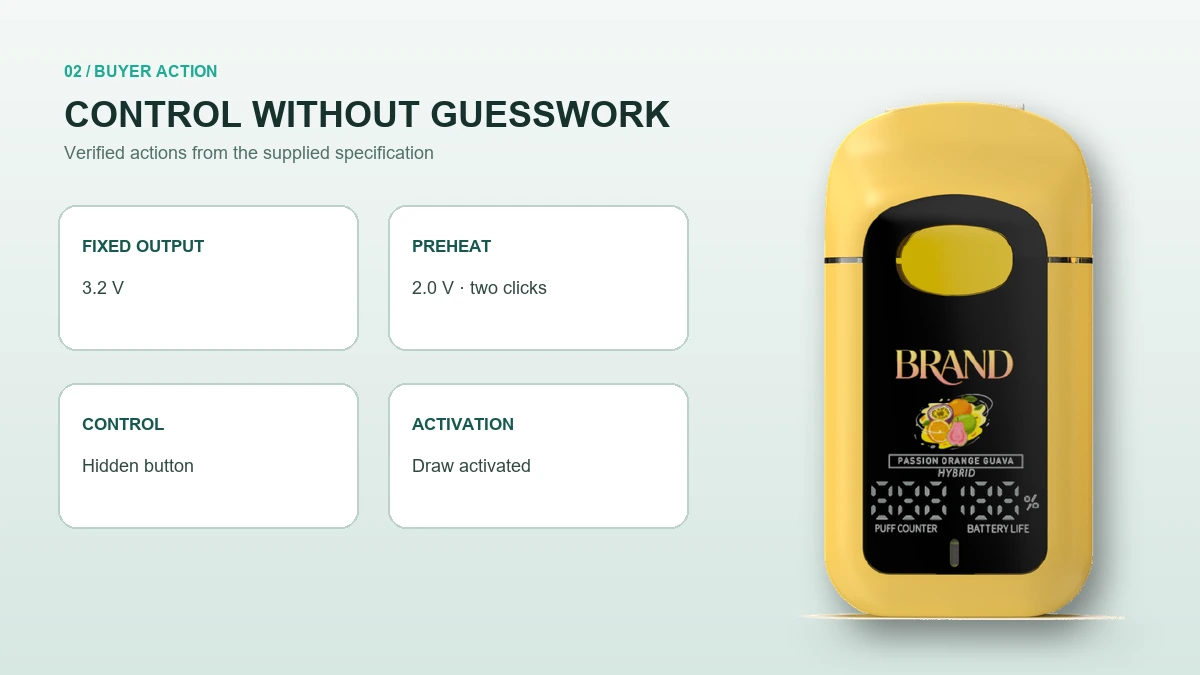

Preheat and Heating Format
- Two clicks start the 2.0V preheat cycle.
- Fixed 3.2V normal output.
- 1.8-ohm center-post-free etched heating structure.
SCREEN 4 / 09

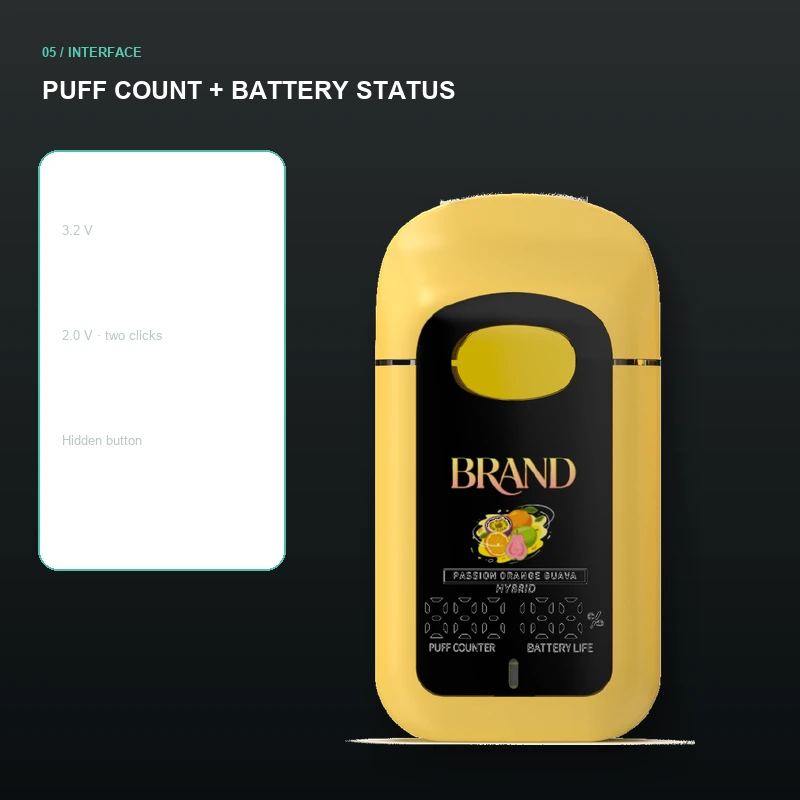

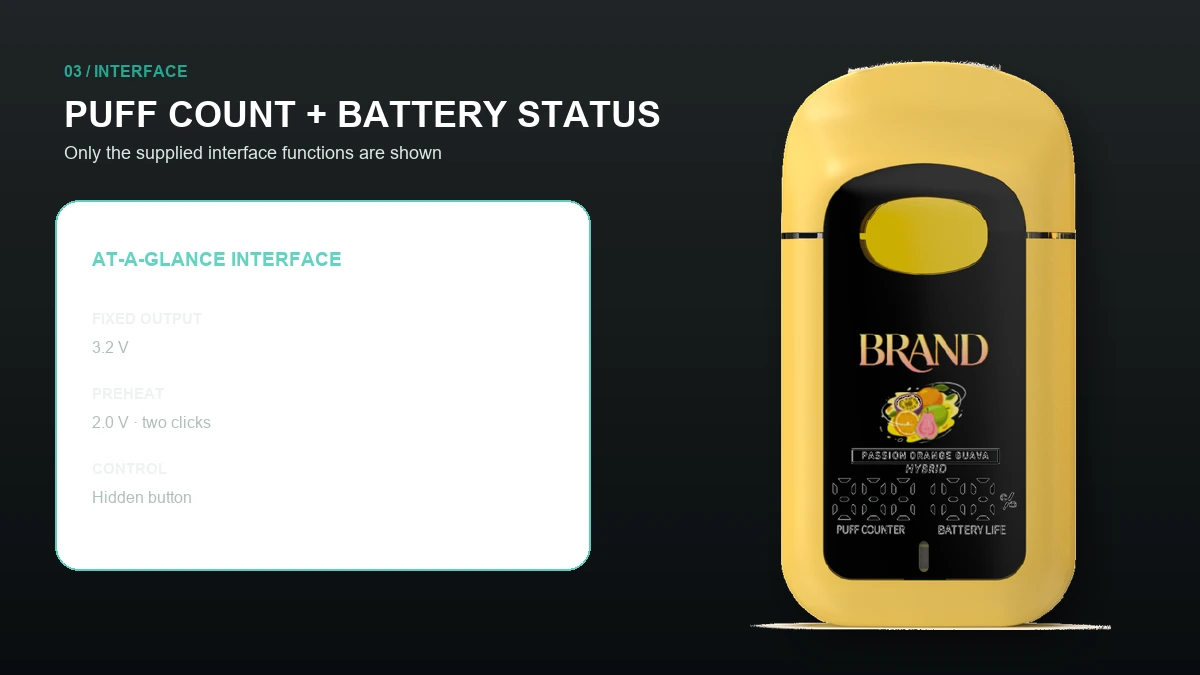

Interface and Status at a Glance
- Digital puff-count and battery-status display.
- Control labels and operating actions are based on the verified source specification.
SCREEN 5 / 09

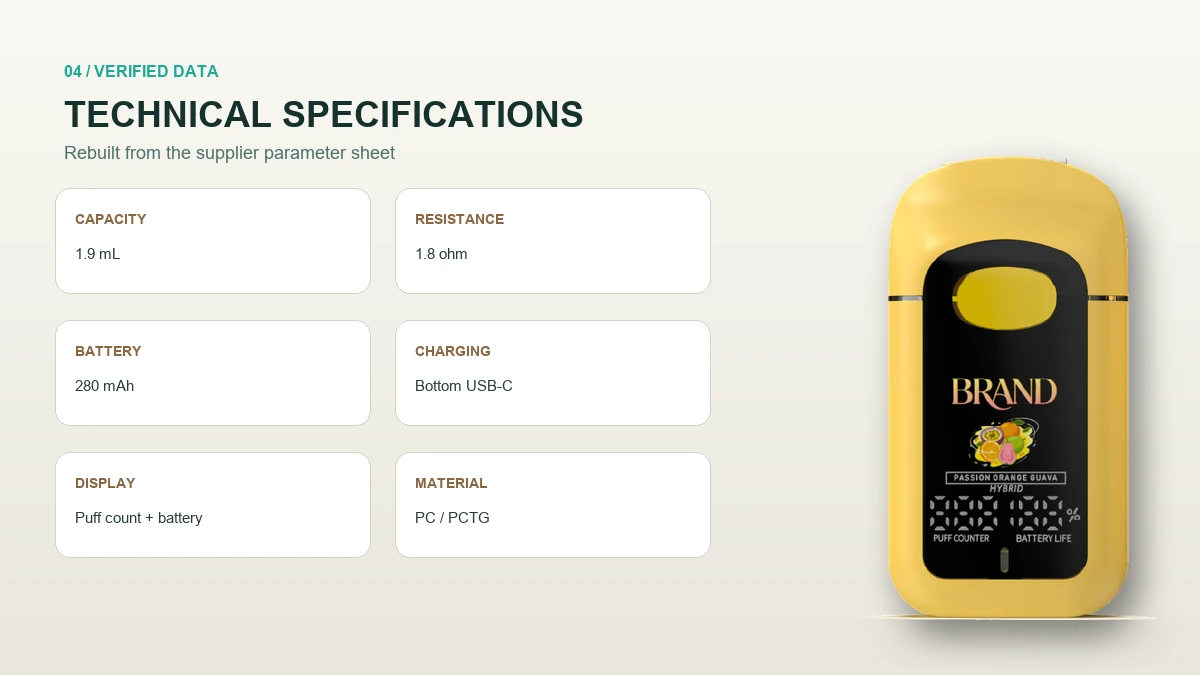

Verified Technical Parameters
- Capacity, resistance, battery, charging and material details are rebuilt in a consistent English format.
- Unsupported performance, runtime, compliance and certification claims are intentionally excluded.
SCREEN 6 / 09

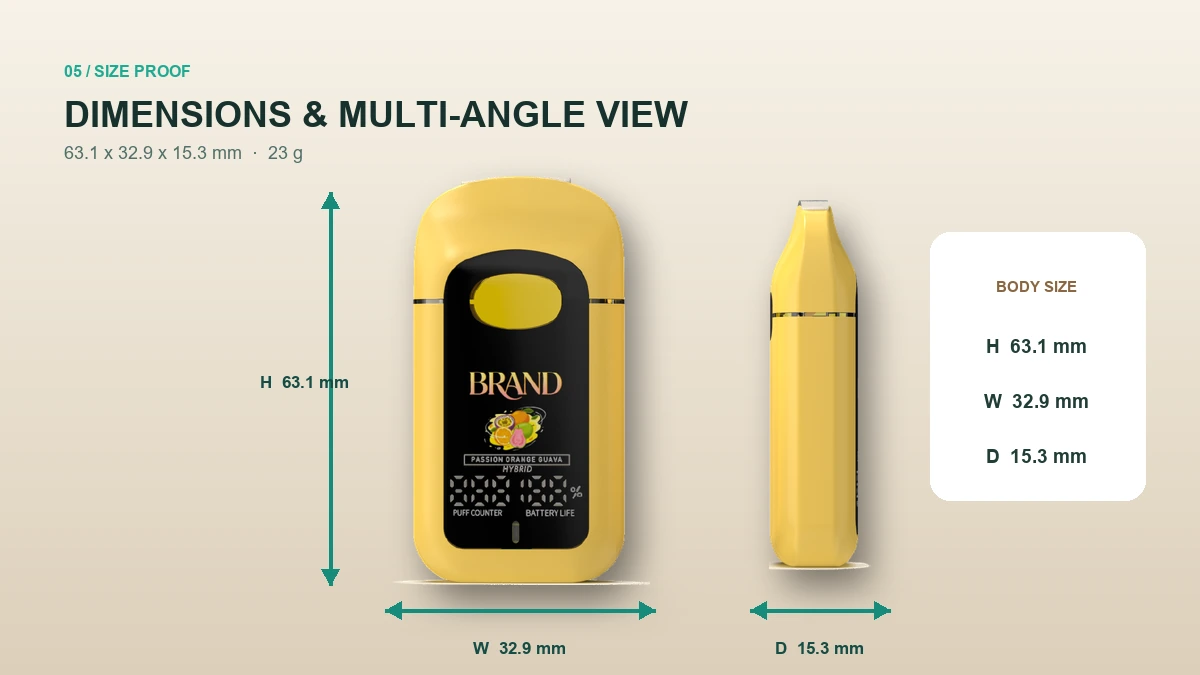

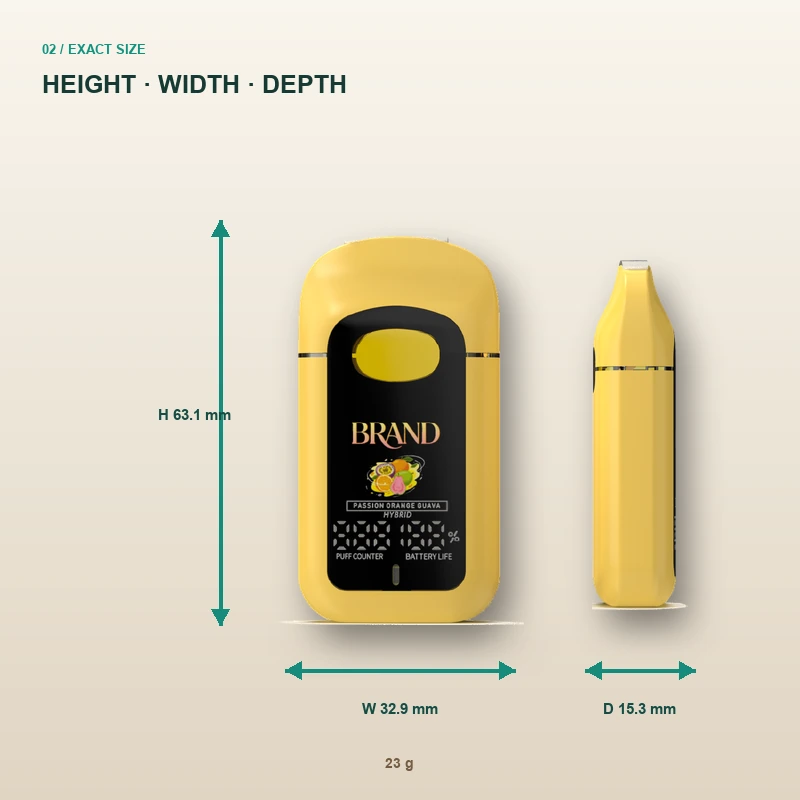

Dimensions and Multi-Angle Presentation
- The supplied dimension data is shown alongside the original product renders.
- Body size: 63.1 x 32.9 x 15.3mm.
SCREEN 7 / 09

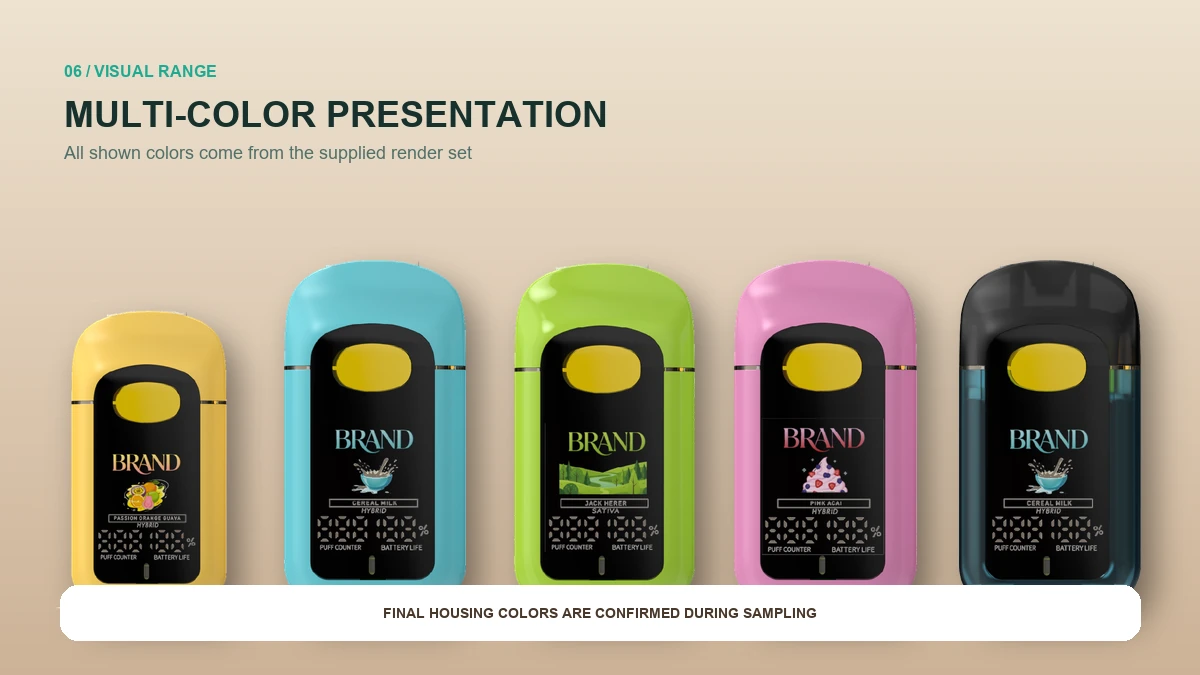

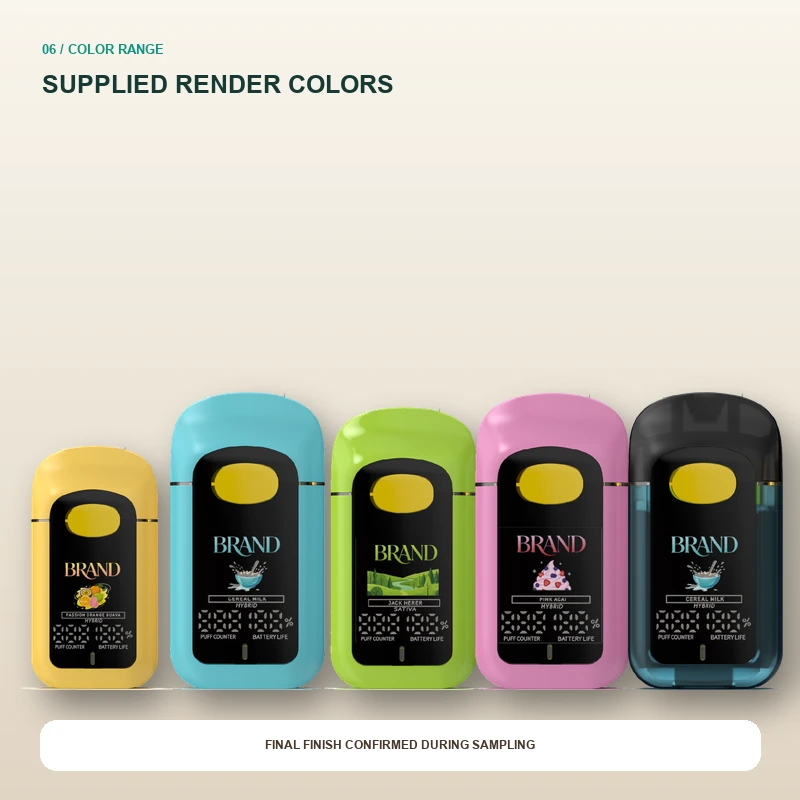

Review the Available Color Direction
- The color lineup uses the supplied render variants.
- Final housing color, graphics and finish are confirmed during sampling.
SCREEN 8 / 09

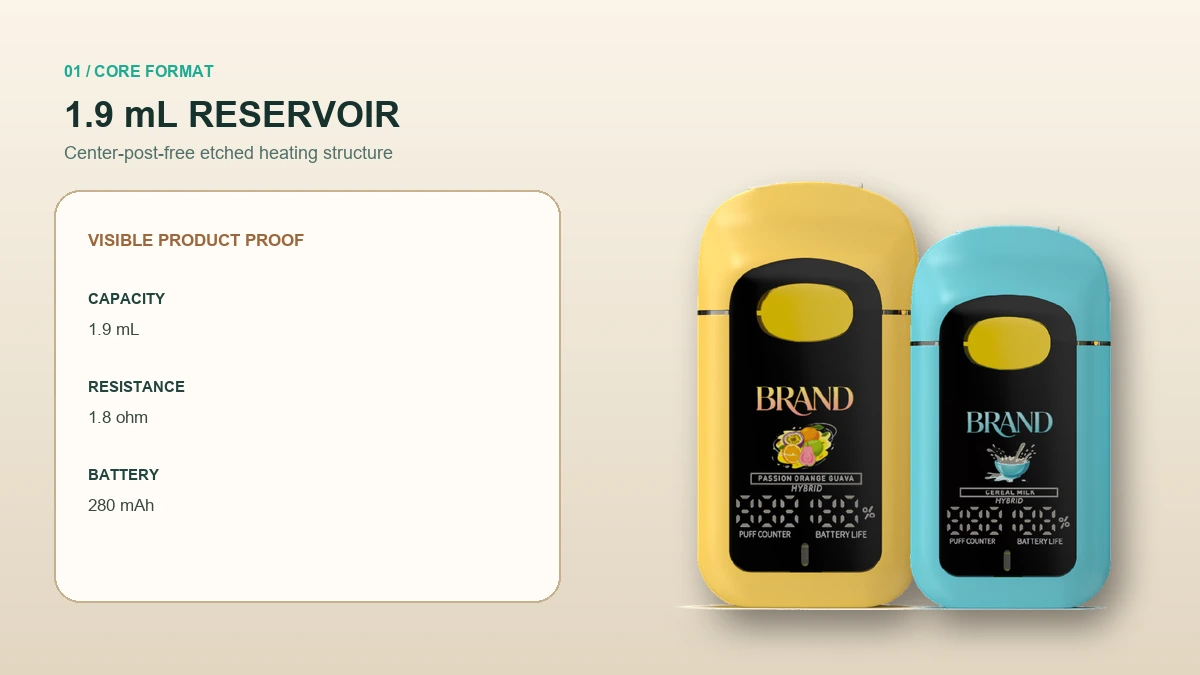

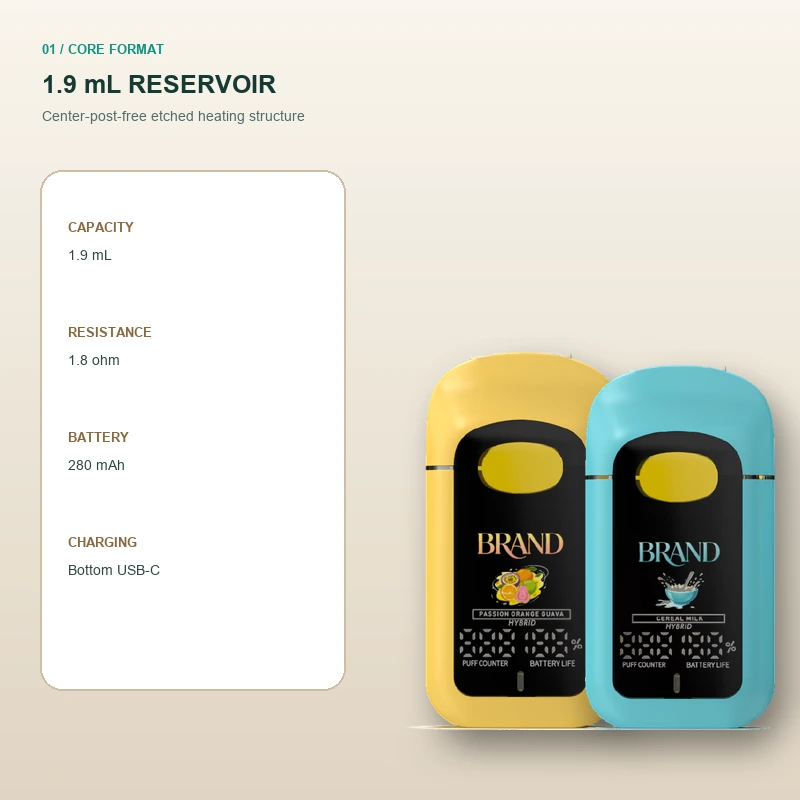

Compact 1.9mL Platform
- 1.9mL reservoir capacity.
- 63.1 x 32.9 x 15.3mm body.
- 23g device weight with bottom USB-C charging.
SCREEN 9 / 09

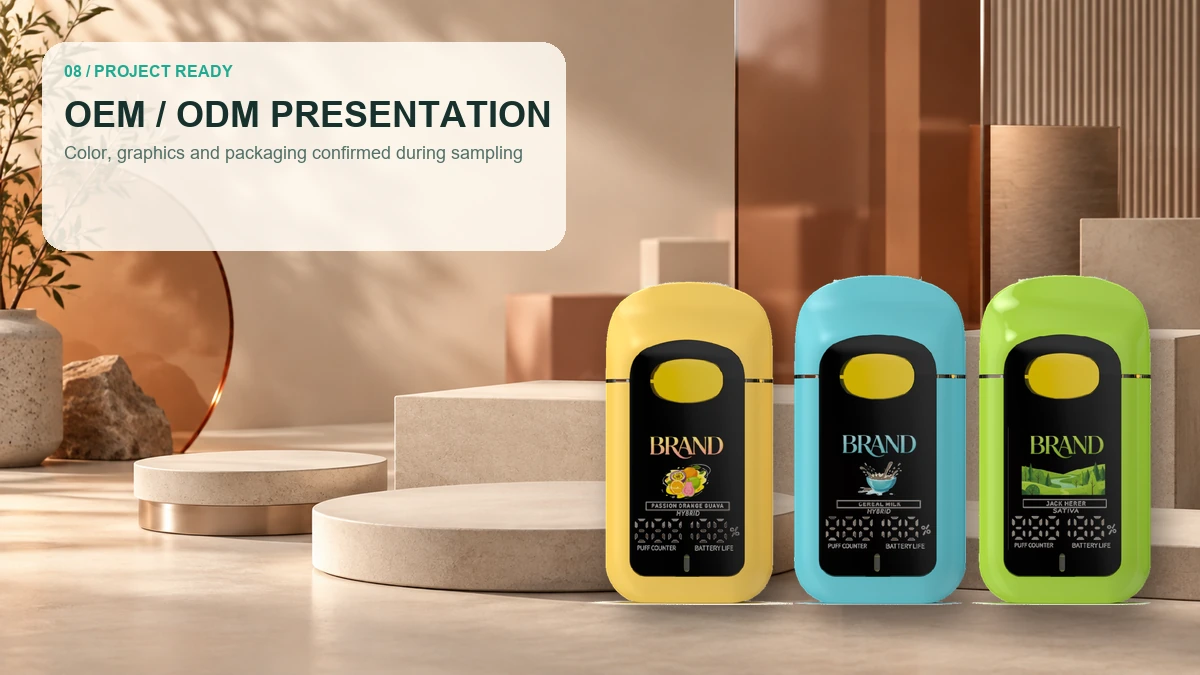

OEM/ODM Presentation
- Housing colors and front graphic treatment can be reviewed during sampling.
- Packaging and order configuration are confirmed against the approved specification.
- MOQ and lead time are confirmed during quotation.
Technical Specifications
| Product Type | Disposable concentrate vaporizer |
|---|---|
| Reservoir Capacity | 1.9mL |
| Resistance | 1.8 ohm |
| Heating Structure | Center-post-free etched heating structure |
| Voltage | 3.2V |
| Preheat | 2.0V; two-click activation |
| Battery | 280mAh |
| Charging | Bottom USB-C |
| Activation | Draw activated |
| Control | Hidden control button |
| Display | Digital puff-count and battery-status display |
| Housing / Reservoir | PC / PCTG |
| Dimensions | 63.1 x 32.9 x 15.3mm |
| Weight | 23g |
Frequently Asked Questions
What does the Dash display show?
The supplied interface is designed to show puff count and battery status.
How is preheat started?
Two clicks start the 2.0V preheat cycle.
What is the reservoir capacity?
Dash uses a 1.9mL reservoir.
Build This Platform for Your Brand
Share the target market, order quantity, concentrate format, housing treatment, graphics and packaging requirements. We will confirm the production specification, sample process, MOQ and lead time before manufacturing.
For legal adult-use markets only. Final concentrate compatibility, electrical specification, branding, packaging and destination-market requirements are confirmed before production.
